Representation of Systems Operational Scenarios

As systems become more complex, greater definition of their operations is needed. With SCADE System 16.0, users now have extended modeling capabilities to allow them to define the intricacies of a system and its subsystems operations through the addition of behavioral diagram modeling.

SCADE System 16.0 includes extended capabilities for standard representations of systems operational scenarios with SysML behavioral diagrams. In addition to existing diagrams for block definition and internal block, R16 now includes diagrams for use case, state machine, activity and sequence.

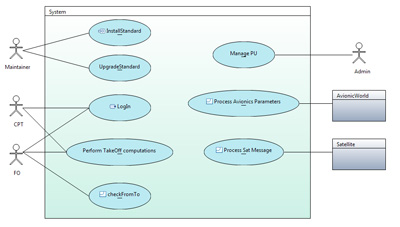

Use Case Diagram:

  • Lists the use cases of the system, highlights the actors interacting with the system
  • Can be further refined with other system behavioral diagrams
Use case diagram

Sequence Diagram:

  • Highlights an operational system scenario referenced from use cases
  • Explains the sequences of exchanges that happen inside a given system
  • Can reference other sequence diagrams or system state machines
Sequence diagram

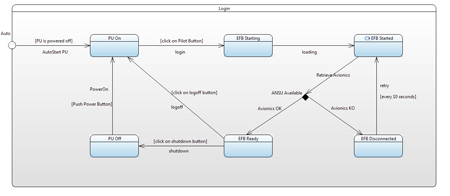

System State Machine Diagram

  • Highlights the states and transitions of a system or subsystem at any level of the system decomposition (not for the software level)
  • Navigates from any state to inner state machine
  • Provides free text or signal usage on transitions
System state machine diagram

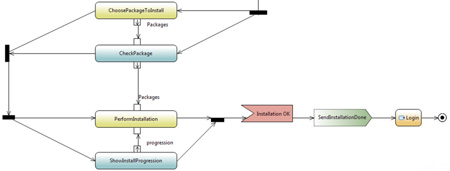

Activity Diagram

  • Highlights the ordering of the actions occurring within a subsystem at any level of the
    system decomposition
  • Navigates from any action to inner activity diagram or state machine
Activity diagram
