ANSYS SCADE System for Avionics

The SCADE System Avionics Package extends and simplifies system design capabilities for the aerospace and defense market. It provides:

  • Out-of-the-box templates for design of systems compliant with standard avionics protocols and operating systems, including ARINC 653, ARINC 429, ARINC 664-P7 (AFDX) and CAN configurations
  • Workflow guidance using a comprehensive industrial example
  • Models or source files for reuse and customization to support company-specific methods
SCADE System for Avionics

The SCADE System Avionics Package consists of:

Configuration Models

  • Avionics: configures the SCADE System Advanced Modeler for a methodology relying on three independent layers: functional, software and platform
  • A429, A664, CAN: independent configurations, allowing you to implement the links between the avionics system layers according to the ARINC 429, ARINC 664-P7 and CAN standard communication protocols
  • A653: special modification of the Avionics configuration to handle dedicated ARINC 653 properties

Automatic ARINC 653 table generation and resource usage checks

  • ARINC 664-P7 communication bandwidth verification

Aircraft Braking System model

  • Comprehensive industrial example that provides guidance for the use and deployment of the defined configurations

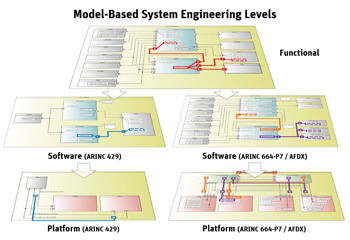

Model-Based System Engineering Levels
