ANSYS 16.2 DO-178C Certification for Aeronautics Embedded Software

With the adoption of DO-178C by the FAA, EASA and other worldwide civil aviation authorities, today’s aeronautics manufacturers must meet new certification objectives. The SCADE Suite and SCADE Display KCG Qualified Code Generators, the SCADE Lifecycle Testing Environment, and the SCADE Suite MTC Model Coverage Tool all provide a model-based approach that satisfies the requirements of DO-330, the tools qualification document within DO-178C, for the highest levels of safety requirements.

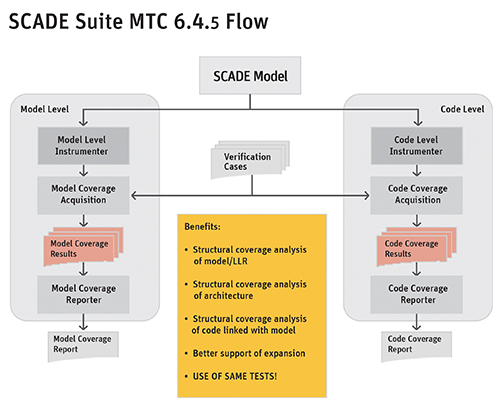

SCADE Suite MTC 6.45 Flow

Tool Qualification/Certification

  • SCADE Suite KCG 6.4 Code Generator is now certified under DO-178C (DO-330 TQL-1) at the highest level of safety.
  • SCADE Suite MTC 6.4.5 supports both the achievement of Model Coverage and Structural Code Coverage analyses.
    • MTC 6.4.5 is qualified as Criteria 2 tool (DO-330 TQL-4).
    • Full Qualification/Certification kits are now available.

New Model-Test Coverage (MTC) Technology Benefits:

  • Model Coverage and Code coverage measures are done simultaneously, at HLR testing level, using a single test suite of Verification Cases (created within SCADE QTE).
  • These two measures fully obey the new DO-178C regulation.
  • This unique method has been formally approved by the FAA (and Boeing) on the KC-46 Tanker program using SCADE Suite.

New Model-Test Coverage (MTC) Graphical Benefits:

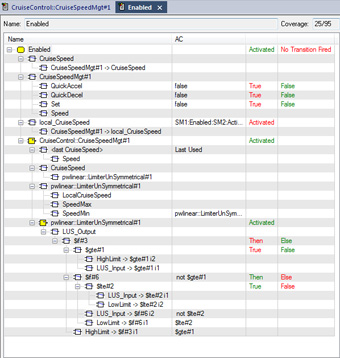

  • A new detailed view allows one to see the coverage and the reasons for activation of a given path from inputs to outputs.
Activatoin of a given path from inputs to output
  • Coverage of expanded operators is improved.
Improved coverage of expanded operators
